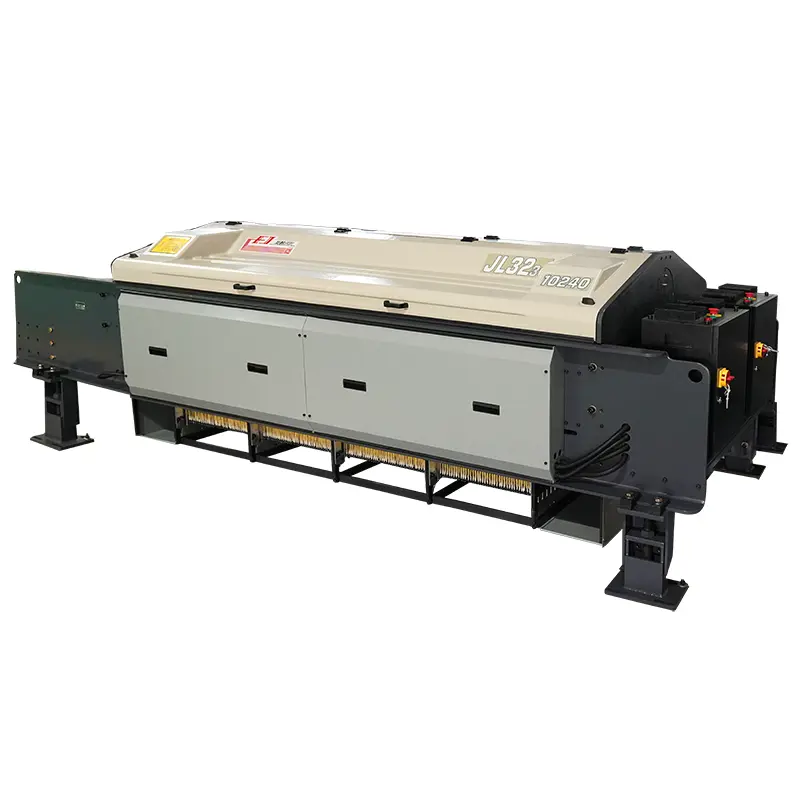

Discover the JL3230 High-Speed Electronic Jacquard – High Output with Technical Precision

For textile manufacturers focused on balancing speed, accuracy, and fabric complexity, the JL3230 High-Speed Electronic Jacquard delivers dependable performance through a combination of innovative motion design and intelligent control systems.

Efficient Shedding for Complex Designs

The JL3230 uses a double-acting full-clear shedding form, enabling detailed control of warp yarns and allowing for intricate patterns. This shedding type improves the clarity of weave structures, especially in designs that require high-density patterning.

Reliable Motion with Conjugate Cam Technology

The lifting knife system is powered by a conjugate cam and concentric shaft mechanism, known for its smooth motion and stability. This mechanical design enhances machine life and minimizes downtime due to wear or misalignment.

High-Capacity Hook Range and Modular Design

Supporting 8448 to 20480 hooks, the JL3230 suits both mid- and high-volume production needs. The 32-row longitudinal module provides expanded flexibility for complex designs, helping manufacturers tackle a wide range of fabric types efficiently.

Smart Control with Expandable Memory

This model comes with a CFJC-series controller (220/320/380), supporting 4GB of storage, expandable to 32GB. This ensures fast design file loading and allows for smoother production of large-scale and high-definition patterns.

Compact Dimensions and Cooling Efficiency

Despite its robust performance, the JL3230 has a space-conscious design (1610mm W × 1250mm H) and includes a side-mounted air cooling system to maintain optimal performance, even during continuous operation.

The JL3230 High-Speed Electronic Jacquard is engineered for precision-focused textile operations that require stable high-speed shedding and flexible hook configuration. With its efficient motion system, intelligent control, and long-term reliability, it supports both productivity and pattern diversity on the weaving floor.
