Functionalities of a fiber optic distribution box

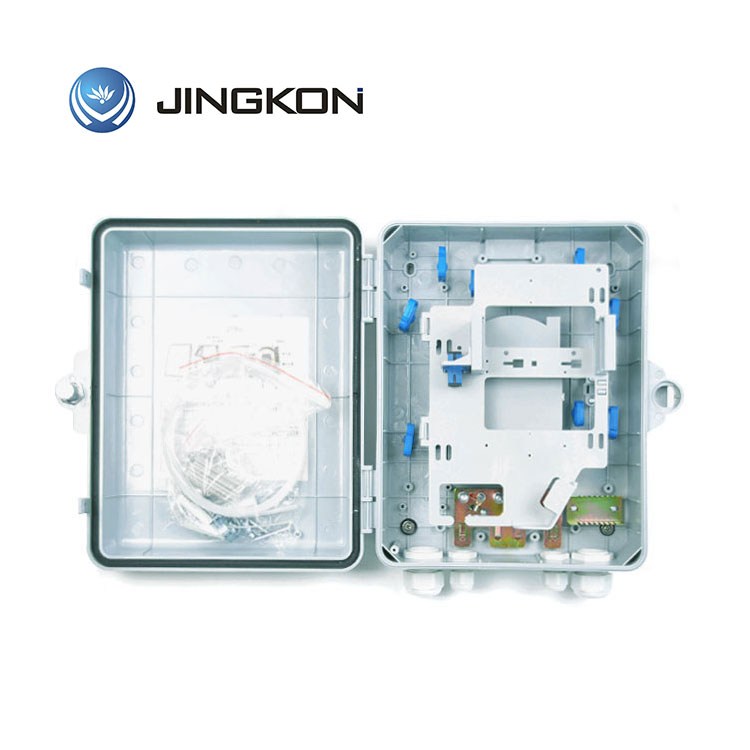

A fiber optic distribution box, also known as a fiber optic termination box or fiber optic patch panel, is a device used in fiber optic networks to organize, terminate, and distribute fiber optic cables. It provides a central location for managing and connecting fiber optic cables, allowing for efficient installation, maintenance, and troubleshooting.

Here are some key features and functionalities of a fiber optic distribution box:

1. Cable Management: Fiber optic distribution boxes are designed to neatly organize and manage incoming and outgoing fiber optic cables. They typically feature cable entry points, routing guides, and slack management systems to ensure proper cable organization and minimize cable stress.

2. Fiber Termination: The distribution box provides termination points where individual fibers from incoming cables can be connected or spliced to pigtails or patch cords. This allows for easy connection to active equipment, such as switches, routers, or optical splitters.

3. Patching and Connectivity: Fiber optic distribution boxes often have patch panels or adapter plates where fiber optic connectors can be securely mounted. These connectors allow for easy and quick connections between fibers using patch cords, enabling flexible network configurations and easy reconfiguration when needed.

4. Splicing and Fusion: In some distribution boxes, there may be provisions for fiber splicing. This allows for the fusion splicing of fibers within the box, creating a permanent and low-loss connection between fibers.

5. Protection and Security: Fiber optic distribution boxes are typically designed with rugged enclosures that provide protection against environmental factors, such as dust, moisture, and mechanical impact. Some boxes also feature lockable doors or panels to prevent unauthorized access or tampering.

6. Scalability: Distribution boxes come in various sizes and configurations to accommodate different fiber optic network requirements. They can range from small boxes suitable for residential or small-scale applications to larger enclosures capable of handling high fiber counts and accommodating multiple termination and patching options.

7. Easy Maintenance and Accessibility: Distribution boxes are designed with ease of maintenance in mind. They often feature removable panels or trays that allow for quick access to terminated fibers, connectors, and splices. This facilitates troubleshooting, upgrades, and routine maintenance tasks.

Fiber optic distribution boxes play a crucial role in managing and distributing fiber optic cables in various applications, including telecommunications, data centers, enterprise networks, and residential installations. They provide a central point for fiber optic connectivity, enabling efficient deployment, organization, and maintenance of fiber optic networks.
